3048

All the current trends in a single layout

3/4

7.47 m

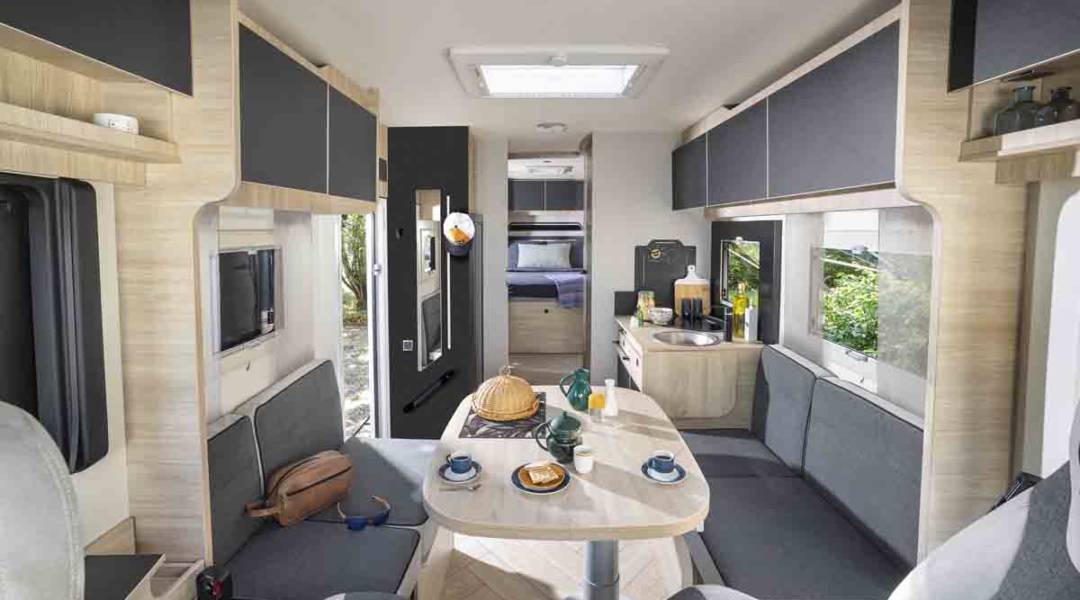

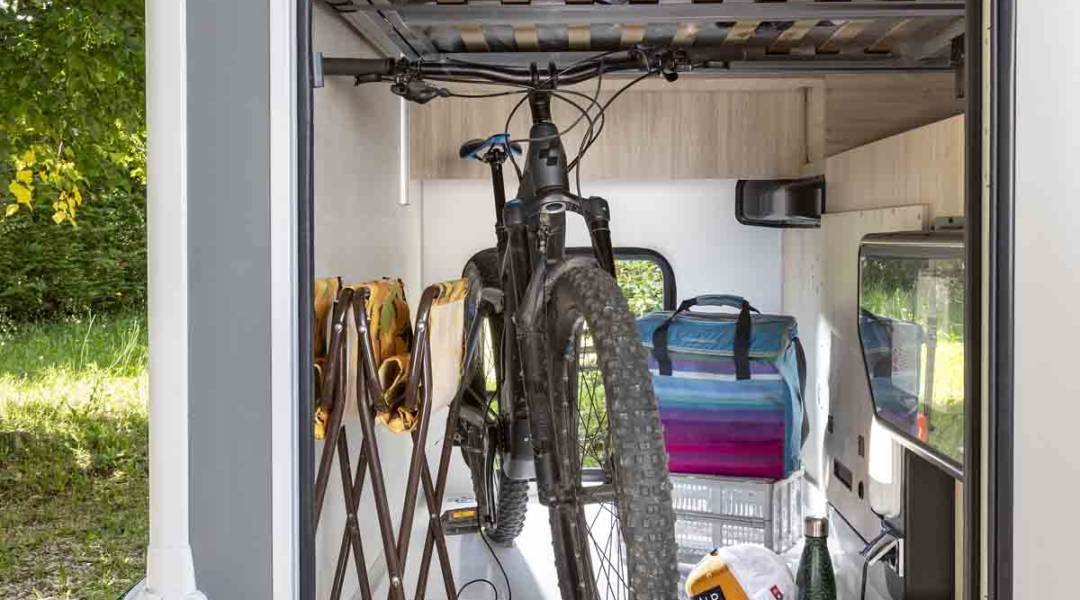

In addition to a 160-centimeter-wide island bed and a height-adjustable garage, the 3048 A-Class offers a bathroom with double partitioning (for more room and easier access) and a latest-generation SMARTLOUNGE, a cozy lounge that transforms into two comfortable individual passenger seats when you're on the road. It’s the market's most highly perfected system!

You are interested in this model, you would like to:
To be contacted by a Challenger distributor

3048 in detail

Standard equipment

graphite edition

Manual cab air conditioning
Driver and passenger airbag
Electric handbrake
Fix and go
Swivel seats in the cab, with double armrests and adjustable height
Cab seat covers with matching cushions
Electric rear-view mirrors
Cruise control and speed limiter
ESP
Eco pack: Stop&Start, smart alternator, electronically-controlled fuel pump
Antenne Radio DAB
Système multimédia
Reversing camera
Commandes au volant
Unit step insulation
Cell door with window
Panoramic skylight (or two skylights)
Double-locking windows with combined blinds/screens
Curtains
Interior cab isothermal shutters
Damped cupboard hinges
USB ports/USB-C
Technibox
Coded front bumper
15'' steel rims with grey trims
All-season tyres
Luxury entrance door with window and central locking cab/cell
Premium mattress main berth
Headboard
TV-ready
Heating using vehicle fuel used while on the road
Entrance door exterior lighting
Wardrobe
Solar panel ready (MPPT ready)
Driver door with electric window

Pack Arctic (As standard)

Insulated and heated waste water tank, fridge vent cover, thermal external blinds, enhanced heating, electric boiler*, heated floor

Pack Look FIAT (Option)

Volant et pommeau de levier de vitesses soft touch, jantes alliages 16'' - 140CV obligatoire

Pack Authentique (Option)

1 lampe diffuseur, 2 coussins, 1 plaid, 1 glacière, 1 airtag, 1 cafetière italienne, 1 couverture pique-nique, 1 sac de transport - à commander auprès de votre concession via la boutique https://shop-trigano.com

Pack Smart (Option)

Capteur niveau eau propre, capteur niveau de gaz, module de contrôle du niveau de la batterie, traceur gps du véhicule, système d'aide à la mise à niveau du véhicule. Connexion au smartphone via Bluetooth et Internet sur souscription - capteur d'eau non disponible sur modèle F&S

Catalog

Technical characteristics

Distributor

Technical characteristics

Boite de vitesses automatique 8 rapports FIAT - 160CH
Boite de vitesses automatique 8 rapports FIAT - 140CH
Châssis FIAT 3T5 >>> 4T4 - 160CH et boite de vitesses automatique obligatoire

Tow hitch - factory fitted (can lead to loss of place for road use)
Hideaway bed
Tissu optionnel

Overall width (m) : 2.32
Overall height (excl. roof rack) (m) : 2.92
Interior height (m) : 2.16
Wheelbase (m) : 4.03
Portillon latéral côté droit (mm) : 745x1045
Portillon latéral côté gauche (mm) : 602x549

Max technically permissible laden mass (kg) : 3500
Vehicle bodycoach weight in running order (+/- 5%) (kg) : 3125

Combined heater/water heater with pulsed air using vehicle fuel TRUMA : 6000W

Fresh water capacity : 120L
Waste water capacity : 115L
Capacité réservoir carburant : 90L
Capacité bouteille de gaz : 13L

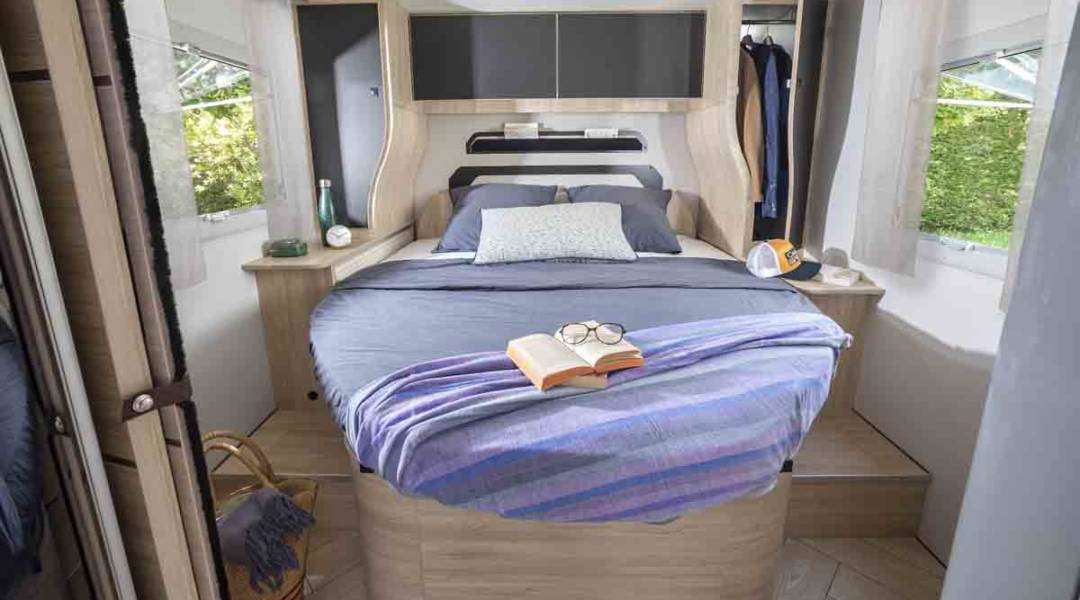

Rear fixed bed (cm) : 160 x 190/200

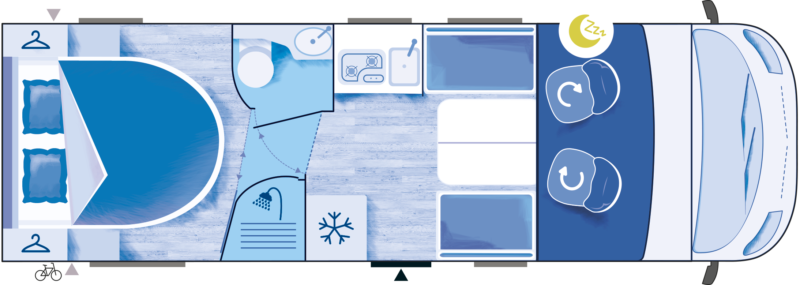

Electric hideaway bed, 2 pers. (max. 250 kg) (cm) : O 140 x 190
Dining area convertible in extra spare bed (cm) : 100 x 195

Compressor fridge 12V/230V : 150L
Feux de cuisson : 3
Poids tractable maximal : 2000

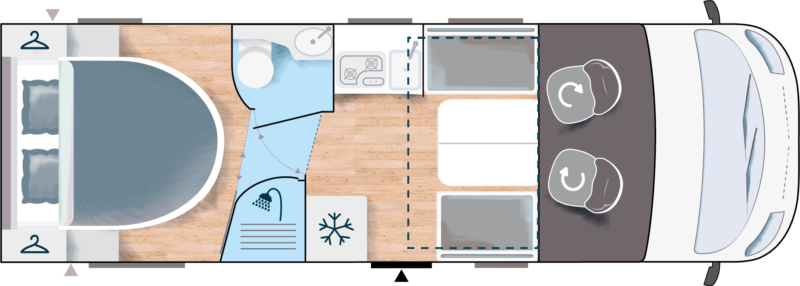

Implantation : ISLAND BEDS
